Industrial Standard

NYLON THREAD CUTTING

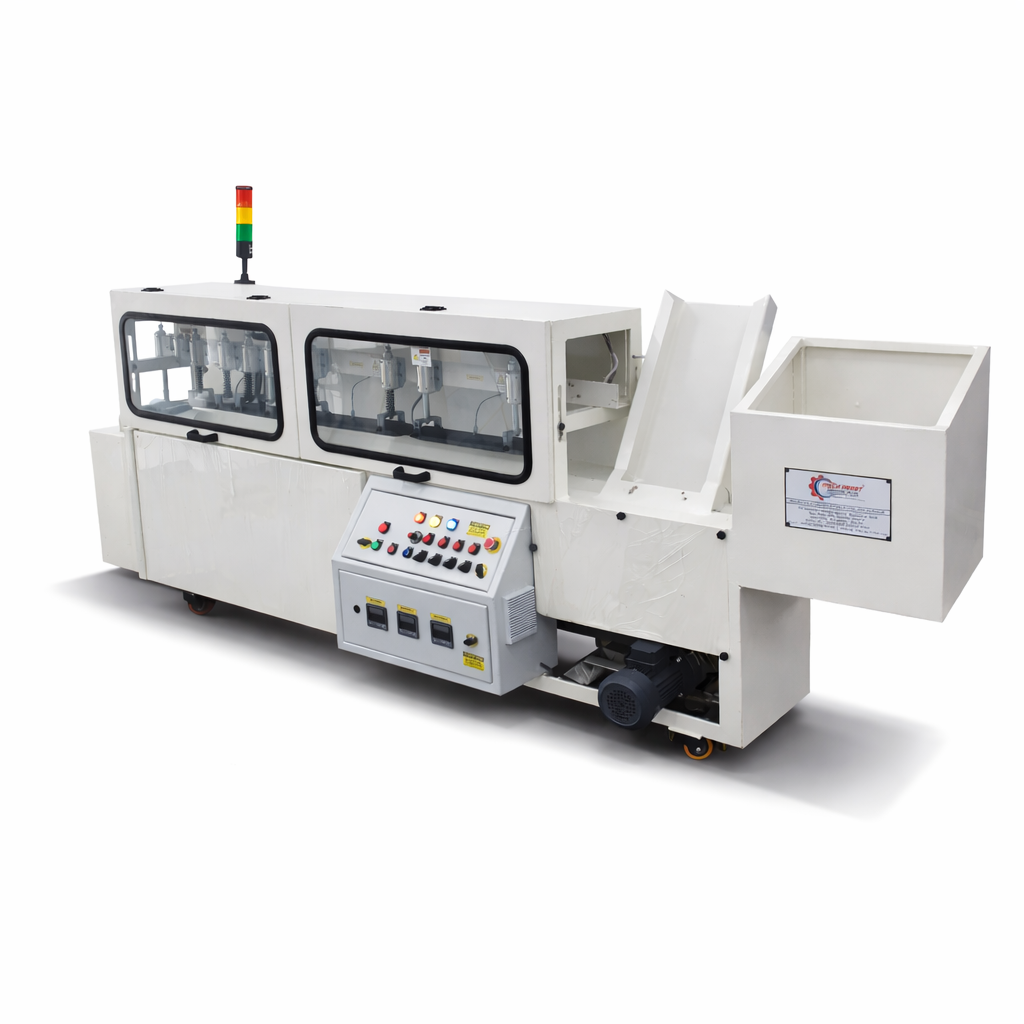

Nylon Thread Cutting machine is a precision-engineered solution designed to deliver clean, accurate, and efficient cutting of nylon threads in industrial applications. It ensures smooth and uniform cutting without fraying, improving the overall finish and quality of the final product. Built with durable components and advanced cutting mechanisms, the machine offers consistent performance even in continuous production environments. It is widely used in woven sack, textile, and packaging industries where precise thread trimming is essential. With easy operation, low maintenance, and high efficiency, this machine helps enhance productivity while maintaining superior cutting accuracy.

Explore Machine Details
[ 01 ] technical specification

NYLON THREAD CUTTING

Specification Details
Machine Name Upgrade Pipe Cleaning Machine
Output 20 to 25 Pipes per Minute Approx
Cut By Heat Cutting Blade (03 Nos.)
Structure Made of M.S. Angle (50 x 50 x 5mm)
Blade Material EN 31
Connected Load 0.75 KW Motor Load, 1 HP Motor, 7 KW Heater Load
Suitable Pipe Dia. 56 x 63 x 282 (I.D x O.D x Length) mm
68 x 77 x 290 (I.D x O.D x Length) mm
Waste Bobbin Dia. 2.5 to 3mm Waste Material on One Side
Speed Adjustment By Drive
Blade Adjustment By Heavy Duty Linear Bearing
Blade Tension By Tension Spring
Gross Weight 375 KGS
Input Supply 440 V
Gear Box Inline Helical
Motor 1 HP, 3 Phase
Mode of Operation By Panel
Dimensions (L x B x H) 3200 x 700 x 1500 mm

[ 01 ] MATERIAL SPECIFICATION

NYLON THREAD CUTTING

Specification Details
Machine Name Upgrade Pipe Cleaning Machine
Structure Made Of Angle 50 x 50 x 5mm
Angle 75 x 75 x 6mm
Sheet 18 Gauge & 20 Gauge
Box Pipe 25 x 25 x 1.6mm
M.S. Shaft
M.O.C. of Heating Blade EN 31
Linear Bearing CTS Make, Sluu Type
Machine Driven By Chain & Sprocket
Speed Reduction Gearbox Make Bonvario
Motor ISO Make, U.K Industries
Structure Finishing Powder Coated (Deep Orange & White)
Accessories Finishing Zinc Plating, Chrome Plating, Blackodizing
Electrical Items M.C.B. & Contactor (Schneider)
Drive (Denfoss)
PID (Multispan)
Sensor, Lamp, Push Button (Sibass)
Wires (Rubicon)
Relay (Omron)
