Hydrostatic Sensor Paver Main Image
Industrial Standard

UPGRADE MODEL

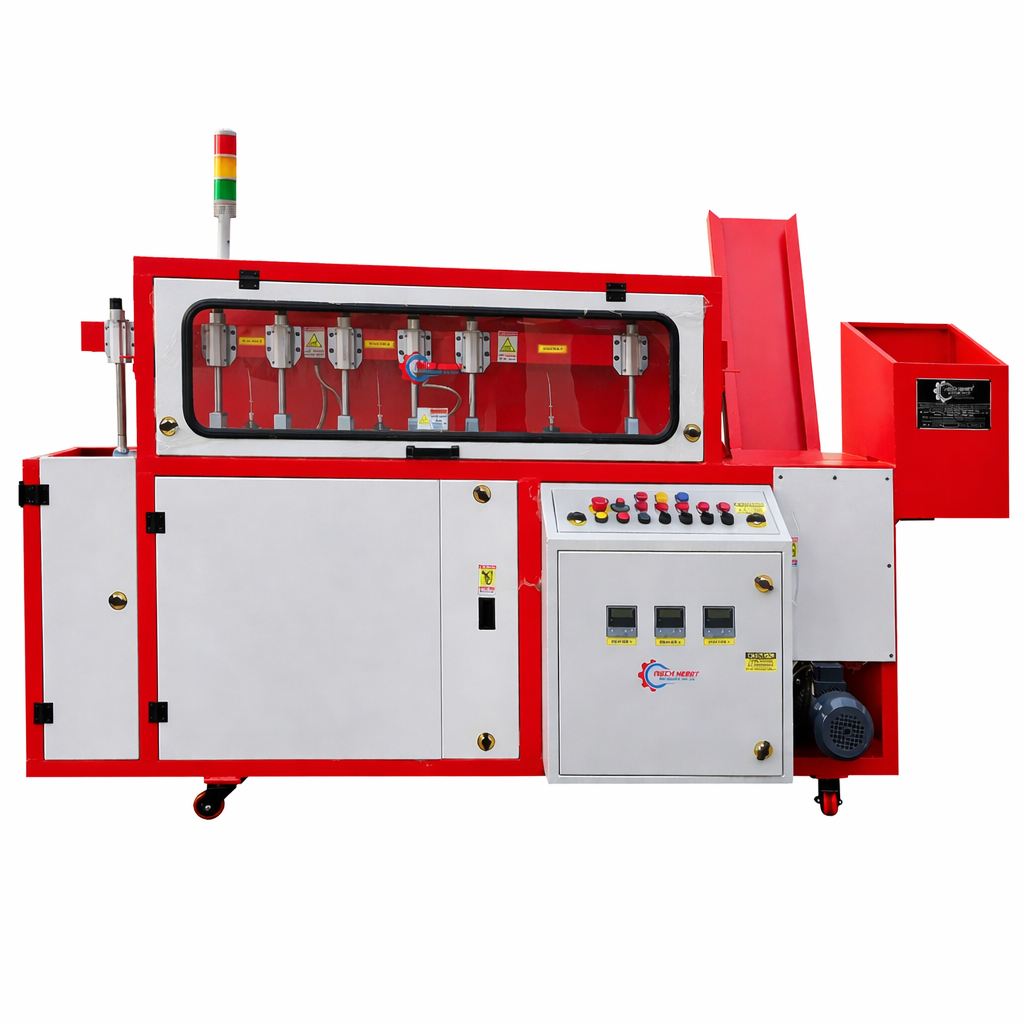

Upgrade Model of Online Pipe Cleaning Machine is an advanced industrial solution designed to deliver enhanced cleaning performance with greater efficiency and precision during continuous production. It effectively removes dust, fibers, and contaminants from pipes without interrupting workflow, ensuring consistent product quality. Equipped with improved components and control systems, this upgraded model offers smoother operation, higher durability, and reduced manual effort. Ideal for woven sack, FIBC, and raffia industries, it helps maintain cleanliness standards while boosting productivity and ensuring reliable, high-quality output.

Explore Machine Details
[ 01 ] technical specification

UPGRADE MODEL Machine

Specification Details
Main Structure Body Made of Heavy M.S. Sheet, 4mm
Machine Output 30 to 40 Pipes / Minute (Heavy Denier / FIBC Fabric)
35 to 45 Pipes / Minute (Normal Denier / Small Bags)
40 to 50 Pipes / Minute (Natural Tapes)
Wastage Cut Through Heating Blade
Qty. of Heating Blade 1 Big, 2 Small (500 + 250 + 250)
Material of Heating Blade EN 31
Heater Type Pencil Heater
Qty. of Heater 1 Big, 2 Small (500 + 250 + 250)
Ideal Pipe Diameter Various size of Pipes can Cut
Diameter with Wastage Up to 55mm
Machine Speed Adjustment By Drive
Heating Blade Height Adjustment By Linear Bearing
Motor Running Indication By Tower Light
Front Side Safety Heavy Acrylic Glass Door (Big Vision)
Movement of Machine By Heavy duty Caster Wheel
Motor 1 HP, 1440 RPM
Connected Load Motor (1 HP / 0.75 KW)
Heater (3 + 1.5 + 1.5 = 6 KW)
Operated By By Panel

[ 01 ] Bought Out Item Details

UPGRADE MODEL Machine

Specification Details
Main Motor Brand Bharat Bijli / Crompton / Havells
Speed 1440 RPM
Mounting Type Horizontal, Flange Mount
Operating 440 V, 50 Hz
Type Non Flame Proof
Gearbox Type Inline Helical Reduction Gearbox
Output RPM 50 RPM
Drive Through Chain Drive
Linear Bearing SLUU Type – 8 Nos.
Thrust Bearing 24 Nos.
Chain Drive Standard as per Machine Speed
Chain Tension Maintained by Ideal Sprocket
Electric Components Standard
