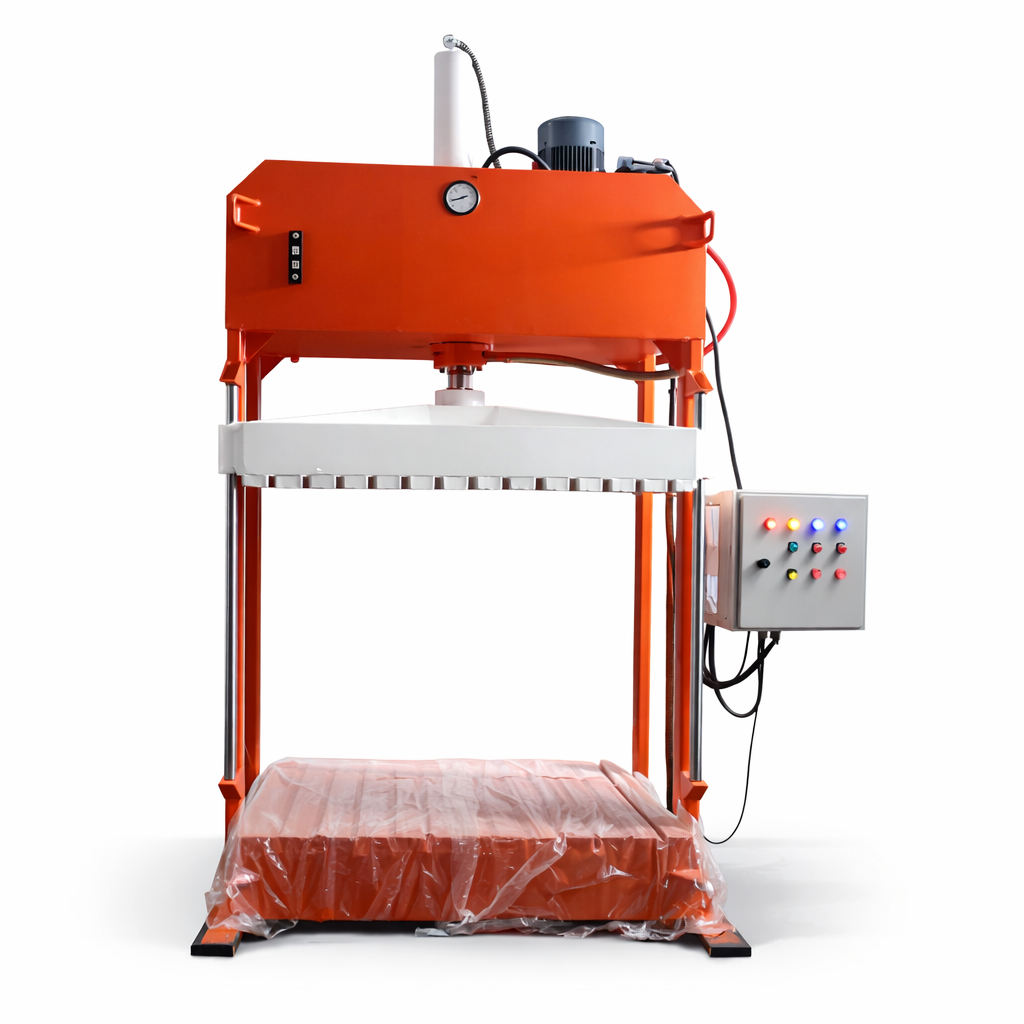

    Hydrostatic Sensor Paver Main Image
    Industrial Standard

    FOR WOVEN BAGS

    FOR WOVEN BAGS is a specialized industrial solution designed to support high-efficiency production and processing in woven sack and FIBC industries. Engineered with precision and durability, this system ensures consistent performance, smooth operation, and enhanced productivity across various stages of woven bag manufacturing. It is ideal for industries dealing with packaging materials such as polypropylene woven bags, bulk bags, and industrial sacks, where strength, uniformity, and output efficiency are critical. Built using robust components and advanced engineering techniques, the solution helps streamline operations while maintaining high-quality standards.

    Explore Machine Details
    [ 01 ] technical specification

    20 TON

    Machine Specification
    Structure Specification
    Main Structure Plate 8mm
    Cylinder Mounting Plate 16mm
    Pillar Box Pipe 100 X 50 X 5mm
    Machine Specification
    Capacity 20 Ton
    Platform Size (mm) 1200 X 800
    Bale Size (mm) L X W X H 1200 X 800 X 450
    (Height Will be change as per Material Density)
    Pressing Material Woven Bags
    Pressure (Kg/cm²) 100
    Cylinder Size (Bore-Ram-Stroke) mm 90 – 120 – 1000
    Daylight Gap (mm) 1150
    Minimum Gap (mm) 150
    Electric Motor (HP) 7.5 HP
    Cycle Time (Sec) 20 - 25
    Guide Rod Details Dia. 40mm, Length 1250mm, 2 Nos.
    Pump Type Hydraulic Gear Pump
    Pump Output 40 LPM
    Control System By Panel (Start, Stop, Up, Down, Emergency)
    Connecting Load • Motor Load: 7.5 HP / 5.6 Kw (440 V, 50 Hz)
    • Limit Switches: (220 V, 50 Hz)
    • Direction Control Valve: (220 V, 50 Hz)
    Oil Required 150 LTR (Grade 68 No.) Buyer Scope
    Machine Finishing 2 Primer Coat + 2 Paint Coat
    Standard Color of Paint will be Deep Orange
    Bought Out Item Details
    Main Motor
    Brand Bharat Bijli / Crompton
    Speed 1440 RPM
    Mounting Type Vertical, Flange Mount
    Operating on 440 V, 50 Hz
    Type Non Flame Proof
    Power Pack Details (Mech Heart Machineries Private Limited)
    Oil Pump
    Pump Type Gear Pump
    Pump Output 40 LPM
    Mounting Type Vertical
    Coupled with Motor By Nylon Coupling
    Brand Colt
    Direction Control Valve
    Brand Hydrank
    Operated By Solenoid
    Operated on AC 220 V
    Pressure Gauge
    Size 4 Inch
    Filled Glycerin Filled
    Mounting Side At Top, Back Side Clamp Mount
    Other Components
    M.S. Manifold Standard as per Power Pack
    Filter Standard as per Power Pack
    Flexible Hose Pipe Standard as per Power Pack
    Hydraulic Feedings Standard as per Power Pack
    Other Accessories Standard as per Power Pack

    [ 01 ] technical specification

    40 TON

    Machine Specification
    Structure Specification
    Main Structure Plate 10mm
    Cylinder Mounting Plate 20mm
    Pillar Box Pipe 100 X 100 X 5mm
    Machine Specification
    Capacity 40 Ton
    Platform Size (mm) 1500 X 1000
    Bale Size (mm) L X W X H 1500 X 1000 X 450
    (Height Will be change as per Material Density)
    Pressing Material Woven Bags
    Pressure (Kg/cm²) 120
    Cylinder Size (Bore-Ram-Stroke) mm 100 – 140 – 1200
    Daylight Gap (mm) 1350
    Minimum Gap (mm) 150
    Electric Motor (HP) 10 HP
    Cycle Time (Sec) 30 - 35
    Guide Rod Details Dia. 60mm, Length 1450mm, 4 Nos.
    Pump Type Hydraulic Vane Pump
    Pump Output 40 LPM + 27 LPM
    Control System By Panel (Start, Stop, Up, Down, Emergency)
    Connecting Load • Motor Load: 10 HP / 7.5 Kw (440 V, 50 Hz)
    • Limit Switches: (220 V, 50 Hz)
    • Direction Control Valve: (220 V, 50 Hz)
    Oil Required 200 LTR (Grade 68 No.) Buyer Scope
    Machine Finishing 2 Primer Coat + 2 Paint Coat
    Standard Color of Paint will be Deep Orange
    Bought Out Item Details
    Main Motor
    Brand Bharat Bijli / Crompton / Havells
    Speed 1440 RPM
    Mounting Type Vertical, Flange Mount
    Operating on 440 V, 50 Hz
    Type Non Flame Proof
    Power Pack Details (Mech Heart Machineries Private Limited)
    Oil Pump
    Pump Type Vane Pump, Tandem Type
    Pump Output 40 LPM + 27 LPM
    Mounting Type Vertical
    Coupled with Motor By Nylon Coupling
    Brand Veljan
    Direction Control Valve
    Brand Hydrank
    Operated By Solenoid
    Operated on AC 220 V
    Pressure Gauge
    Size 4 Inch
    Filled Glycerin Filled
    Mounting Side At Top, Back Side Clamp Mount
    Other Components
    M.S. Manifold Standard as per Power Pack
    Pressure Control Module Standard as per Power Pack
    Filter Standard as per Power Pack
    Flexible Hose Pipe Standard as per Power Pack
    Hydraulic Feedings Standard as per Power Pack
    Other Accessories Standard as per Power Pack
    [ 01 ] technical specification

    60 TON

    Machine Specification
    Structure Specification
    Main Structure Plate 12mm
    Cylinder Mounting Plate 30mm
    Pillar Box Pipe 150 X 150 X 5mm
    Machine Specification
    Capacity 60 Ton
    Platform Size (mm) 1500 X 1000
    Bale Size (mm) L X W X H 1500 X 1000 X 450
    (Height Will be change as per Material Density)
    Pressing Material Woven Bags
    Pressure (Kg/cm²) 120
    Cylinder Size (Bore-Ram-Stroke) mm 120 – 180 – 1200
    Daylight Gap (mm) 1350
    Minimum Gap (mm) 150
    Electric Motor (HP) 10 HP
    Cycle Time (Sec) 30 - 35
    Guide Rod Details Dia. 60mm, Length 1450mm, 4 Nos.
    Pump Type Hydraulic Vane Pump
    Pump Output 60 LPM + 30 LPM
    Control System By Panel (Start, Stop, Up, Down, Emergency)
    Connecting Load • Motor Load: 12.5 HP
    • Limit Switches: (220 V, 50 Hz)
    • Direction Control Valve: (220 V, 50 Hz)
    Oil Required 250 LTR (Grade 68 No.) Buyer Scope
    Machine Finishing 2 Primer Coat + 2 Paint Coat
    Standard Color of Paint will be Deep Orange
    Bought Out Item Details
    Main Motor
    Brand Bharat Bijli / Crompton / Havells
    Speed 1440 RPM
    Mounting Type Vertical, Flange Mount
    Operating on 440 V, 50 Hz
    Type Non Flame Proof
    Power Pack Details (Mech Heart Machineries Private Limited)
    Oil Pump
    Pump Type Vane Pump, Tandem Type
    Pump Output 60 LPM + 30 LPM
    Mounting Type Vertical
    Coupled with Motor By Nylon Coupling
    Brand Veljan
    Direction Control Valve
    Brand Hydrank
    Operated By Solenoid
    Operated on AC 220 V
    Pressure Gauge
    Size 4 Inch
    Filled Glycerin Filled
    Mounting Side At Top, Back Side Clamp Mount
    Other Components
    M.S. Manifold Standard as per Power Pack
    Pressure Control Module Standard as per Power Pack
    Filter Standard as per Power Pack
    Flexible Hose Pipe Standard as per Power Pack
    Hydraulic Feedings Standard as per Power Pack
    Other Accessories Standard as per Power Pack
    [ 01 ] technical specification

    80 TON

    Machine Specification
    Structure Specification
    Main Structure Plate 16mm
    Cylinder Mounting Plate 30mm
    Pillar Box Pipe 150 X 150 X 5mm
    Machine Specification
    Capacity 80 Ton
    Platform Size (mm) 1500 X 1000
    Bale Size (mm) L X W X H 1500 X 1000 X 450
    (Height Will be change as per Material Density)
    Pressing Material Woven Bags
    Pressure (Kg/cm²) 120
    Cylinder Size (Bore-Ram-Stroke) mm 140 – 220 – 1200
    Daylight Gap (mm) 1350
    Minimum Gap (mm) 150
    Electric Motor (HP) 10 HP
    Cycle Time (Sec) 30 - 35
    Guide Rod Details Dia. 60mm, Length 1450mm, 4 Nos.
    Pump Type Hydraulic Vane Pump
    Pump Output 100 LPM + 50 LPM
    Control System By Panel (Start, Stop, Up, Down, Emergency)
    Connecting Load • Motor Load: 15 HP / 11.18 Kw (440 V, 50 Hz)
    • Limit Switches: (220 V, 50 Hz)
    • Direction Control Valve: (220 V, 50 Hz)
    Oil Required 250 LTR (Grade 68 No.) Buyer Scope
    Machine Finishing 2 Primer Coat + 2 Paint Coat
    Standard Color of Paint will be Deep Orange
    Bought Out Item Details
    Main Motor
    Brand Bharat Bijli / Crompton / Havells
    Speed 1440 RPM
    Mounting Type Vertical, Flange Mount
    Operating on 440 V, 50 Hz
    Type Non Flame Proof
    Power Pack Details (Mech Heart Machineries Private Limited)
    Oil Pump
    Pump Type Vane Pump, Tandem Type
    Pump Output 100 LPM + 50 LPM
    Mounting Type Vertical
    Coupled with Motor By Nylon Coupling
    Brand Veljan
    Direction Control Valve
    Brand Hydrank
    Operated By Solenoid
    Operated on AC 220 V
    Pressure Gauge
    Size 4 Inch
    Filled Glycerin Filled
    Mounting Side At Top, Back Side Clamp Mount
    Other Components
    M.S. Manifold Standard as per Power Pack
    Pressure Control Module Standard as per Power Pack
    Filter Standard as per Power Pack
    Flexible Hose Pipe Standard as per Power Pack
    Hydraulic Feedings Standard as per Power Pack
    Other Accessories Standard as per Power Pack
